Monkee Mountain Railroad's Control system, Rolling Stock & Locomotives (This page is under construction) |
|---|
Click on a thumbnail to view a photo NOTE: Some photos may require an extra click to view a larger photo |
|---|
|

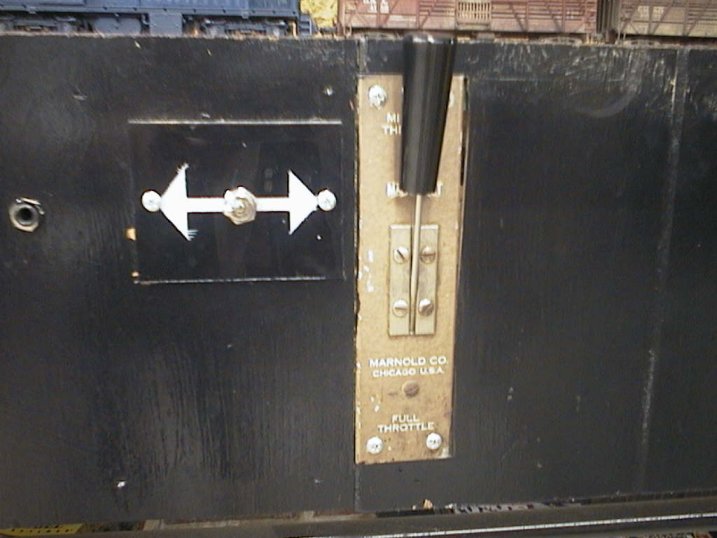

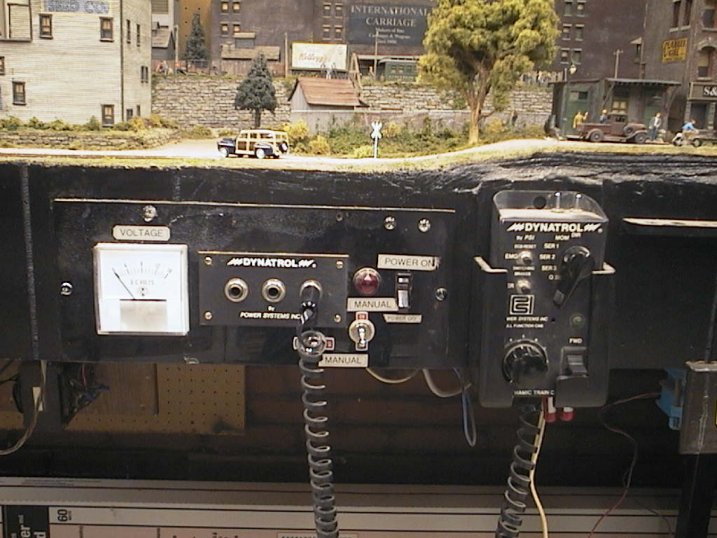

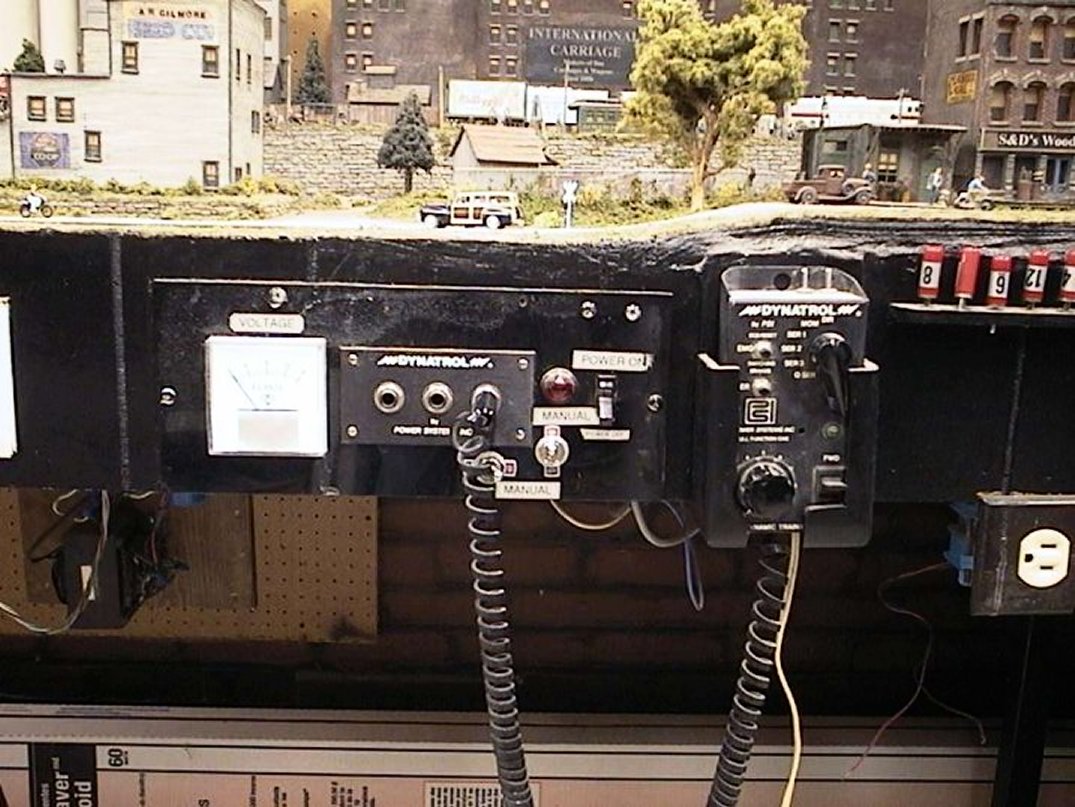

DYNATROL COMMAND CONTROL & DC Power I purchased my Dynatrol system long before the release of the current DCC systems. The MMRR can be operated using 2 different types of controls: DYNATROL COMMAND CONTROL or STANDARD DC I have 4 walkaround hand controllers for the Dynatrol 2 of the controllers are able to run up to 3 engines mued together The other 2 controllers are designed only to run 1 engine at a time. I have 6 jacks placed around the layout that I can plug the hand controllers into. Eventually there will be jacks every 4 feet all around the layout. I currently have 15 engine receivers as noted by the red plugs. Each plug will activate an individual engine receiver when plugged into the bottom of a hand controller unit. The Dynatrol System is powered by an 8 amp 16 volt Signal Transformer tucked beneath the layout. (I can almost arc weld with this transformer) When running with STANDARD DC, the 1950's lever is used

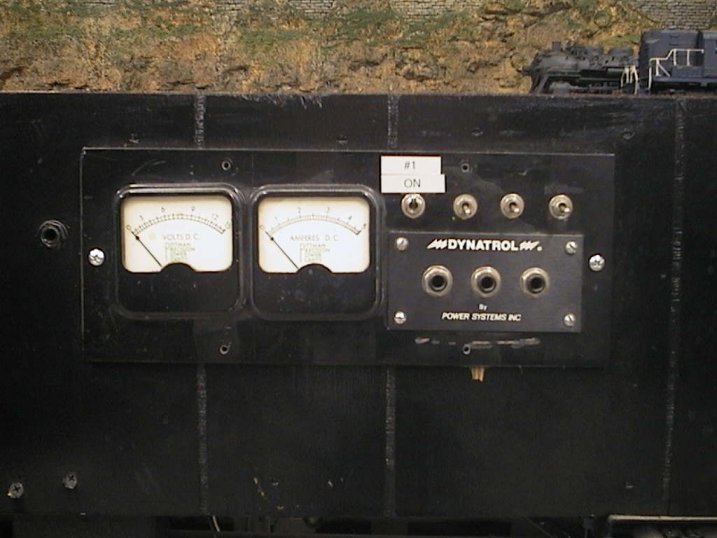

 Two 10 gauge wires run beneath the entire layout, with 18 gauge wire drop downs from the track approximately every 3 or 4 feet to maintain constant flow of electricity. There are 2 double pole double throw switches on the main panel. If I flip them both to MANUAL, the Dynatrol is disabled and I am then able to run trains on standard 16 volt DC power via the 8 amp power pack and the throttle lever pictured in photo 3 Monitoring the power I have 1 amphere guage and 2 voltage gauges, they are depicted in the photos. I have such good power flow that 3 Proto 1000 engines pulling 27 cars at full speed will only draw 1/4 amp. The only main drawback to my setup is I cannot have any engines with the Dynatrol receivers sitting on powered tracks when the MANUAL controls are used nor vice versa. |
|---|
|

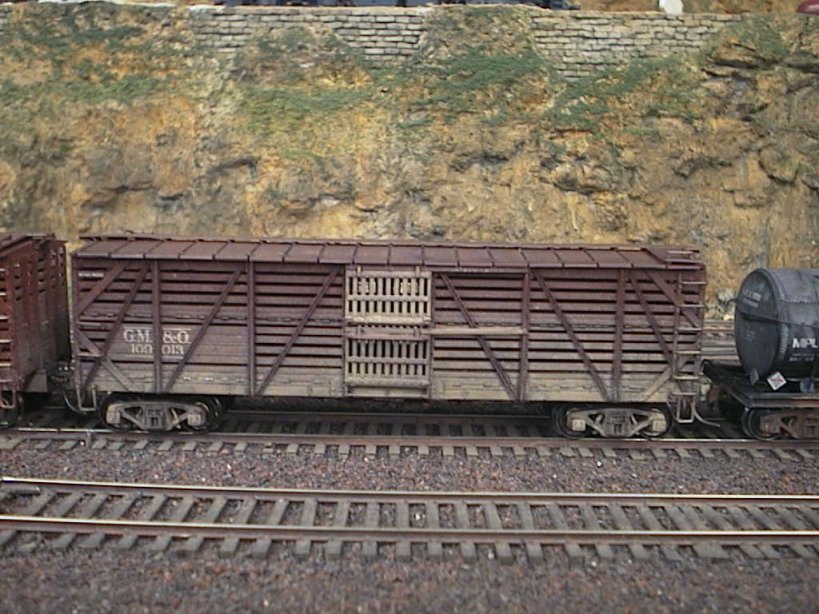

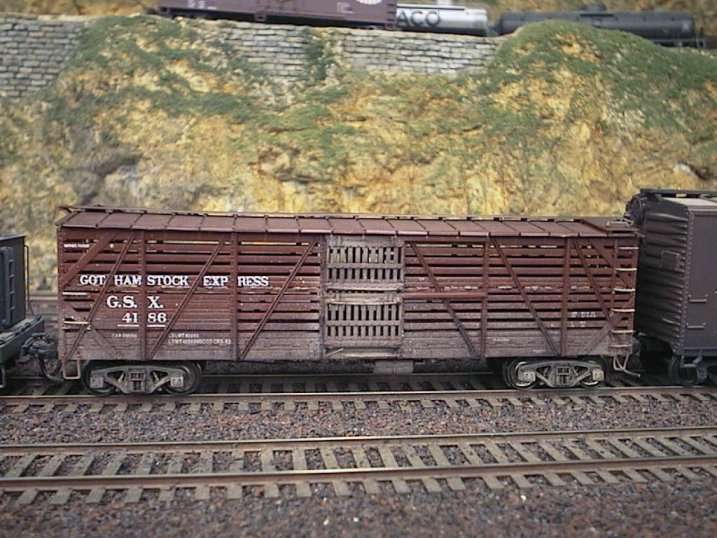

ROLLING STOCK A few photos of some rolling stock I have Proto 2000 Double Deck Stock Car  Proto 2000 Double Deck Stock Car  Proto 2000 10,000 Gallon Tank Car  Proto 2000 50' Single Door Steel Boxcar  |
|---|
|

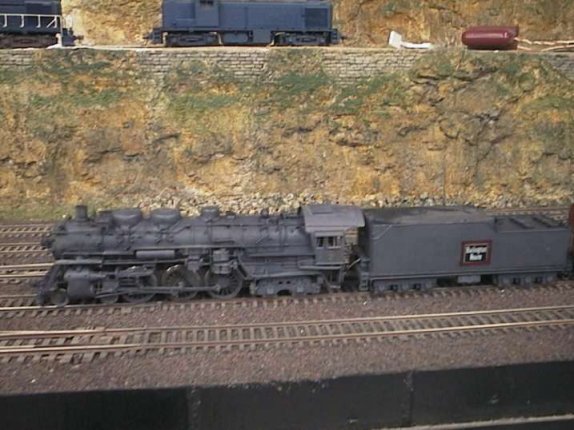

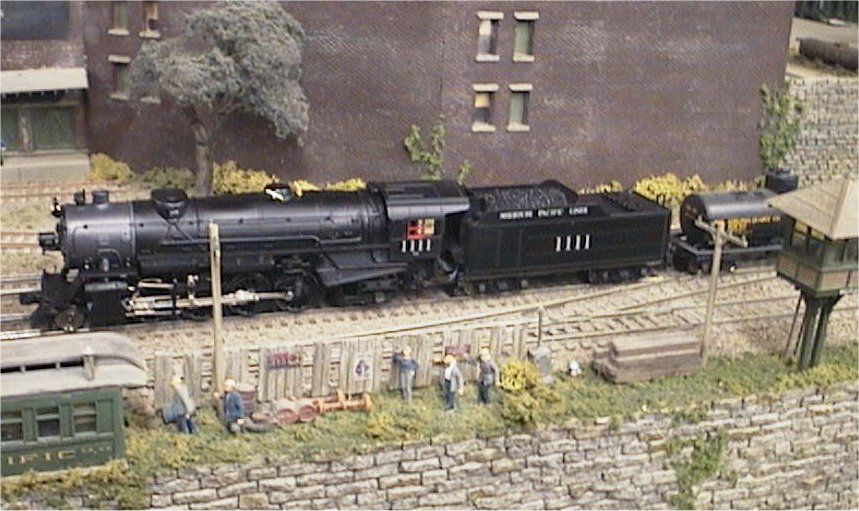

LOCOMOTIVES - Diesel & Steam My Latest acquisition April 2004: Broadway Limited 2-8-2 With Quantum Sound The sound is terrific and runs best towing 27 cars  Key Imports Brass 4-6-4 Engine & Tender DYNATROL controlled This 4-6-4 can barely creep or cannonball easily with 27 cars behind

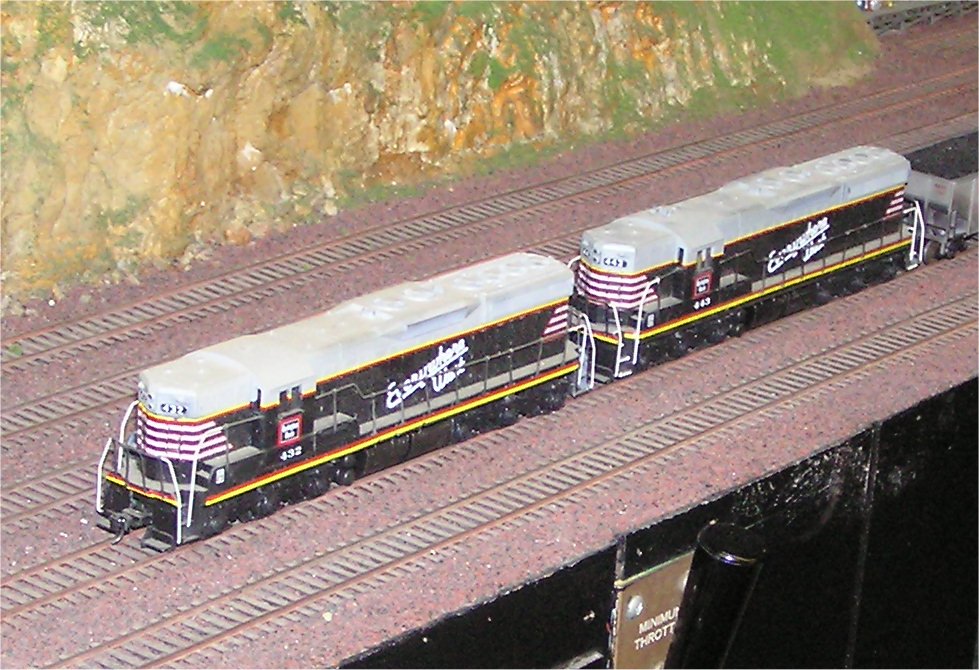

 A pair of Athearn SD9's painted & decaled by the late Jack Woolard
 Custom built MDC Climax made for me by one of my customers. This model has a Sagami motor, special gearing, custom HD underframe. You can watch the flywheel slowly turn on this baby
 |
|---|
